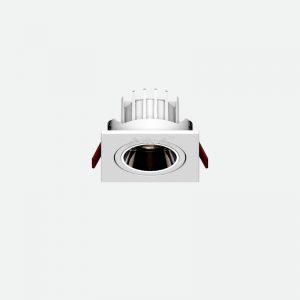

WL111337-WL111338_800x800

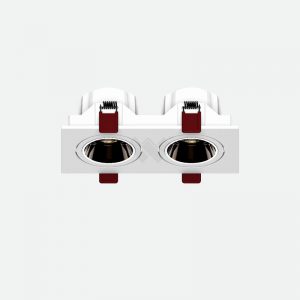

WL111339-WL111340_800x800

ADRIAN SQ ADJ

ADRIAN adjustable series downlights adopts CREE LED as a light source

Lamp body made with quality aluminum in powder-coated treatment

Multiple reflecting angles of anti-dazzle reflector with UGR <16

Excellent heat sink capability for long living

Lifespan is up to 50,000 hrs

Easy to install, use stainless steel spring, safe and durable

0-10V, Dali, Triac dimmable

SKU: WL111337,WL111338, WL111339, WL111340 Category: Tags: ,

Description

WL111337 7W 85x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111337.02.12.30COB7W455lm220~240VAC≥90White12°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.24.30COB7W455lm220~240VAC≥90White24°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.36.30COB7W455lm220~240VAC≥90White36°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.12.30COB7W455lm220~240VAC≥90Black12°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.24.30COB7W455lm220~240VAC≥90Black24°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.36.30COB7W455lm220~240VAC≥90Black36°3000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.12.40COB7W455lm220~240VAC≥90White12°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.24.40COB7W455lm220~240VAC≥90White24°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.36.40COB7W455lm220~240VAC≥90White36°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.12.40COB7W455lm220~240VAC≥90Black12°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.24.40COB7W455lm220~240VAC≥90Black24°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.36.40COB7W455lm220~240VAC≥90Black36°4000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.12.50COB7W455lm220~240VAC≥90White12°5000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.24.50COB7W455lm220~240VAC≥90White24°5000KIP4030°/NA85x85x65mmØ75mm
WL111337.02.36.50COB7W455lm220~240VAC≥90White36°5000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.12.50COB7W455lm220~240VAC≥90Black12°5000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.24.50COB7W455lm220~240VAC≥90Black24°5000KIP4030°/NA85x85x65mmØ75mm
WL111337.04.36.50COB7W455lm220~240VAC≥90Black36°5000KIP4030°/NA85x85x65mmØ75mm

WL111338 12W 85x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111338.02.12.30COB12W750lm220~240VAC≥90White12°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.24.30COB12W750lm220~240VAC≥90White24°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.36.30COB12W750lm220~240VAC≥90White36°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.12.30COB12W750lm220~240VAC≥90Black12°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.24.30COB12W750lm220~240VAC≥90Black24°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.36.30COB12W750lm220~240VAC≥90Black36°3000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.12.40COB12W750lm220~240VAC≥90White12°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.24.40COB12W750lm220~240VAC≥90White24°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.36.40COB12W750lm220~240VAC≥90White36°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.12.40COB12W750lm220~240VAC≥90Black12°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.24.40COB12W750lm220~240VAC≥90Black24°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.36.40COB12W750lm220~240VAC≥90Black36°4000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.12.50COB12W750lm220~240VAC≥90White12°5000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.24.50COB12W750lm220~240VAC≥90White24°5000KIP4030°/NA85x85x65mmØ75mm
WL111338.02.36.50COB12W750lm220~240VAC≥90White36°5000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.12.50COB12W750lm220~240VAC≥90Black12°5000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.24.50COB12W750lm220~240VAC≥90Black24°5000KIP4030°/NA85x85x65mmØ75mm
WL111338.04.36.50COB12W750lmv≥90Black36°5000KIP4030°/NA85x85x65mmØ75mm

WL111339 14W 168x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111339.02.12.30COB14W910lm220~240VAC≥90White12°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.24.30COB14W910lm220~240VAC≥90White24°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.36.30COB14W910lm220~240VAC≥90White36°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.12.30COB14W910lm220~240VAC≥90Black12°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.24.30COB14W910lm220~240VAC≥90Black24°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.36.30COB14W910lm220~240VAC≥90Black36°3000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.12.40COB14W910lm220~240VAC≥90White12°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.24.40COB14W910lm220~240VAC≥90White24°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.36.40COB14W910lm220~240VAC≥90White36°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.12.40COB14W910lm220~240VAC≥90Black12°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.24.40COB14W910lm220~240VAC≥90Black24°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.36.40COB14W910lm220~240VAC≥90Black36°4000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.12.50COB14W910lm220~240VAC≥90White12°5000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.24.50COB14W910lm220~240VAC≥90White24°5000KIP4030°/NA168x85x65mm160x75mm
WL111339.02.36.50COB14W910lm220~240VAC≥90White36°5000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.12.50COB14W910lm220~240VAC≥90Black12°5000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.24.50COB14W910lm220~240VAC≥90Black24°5000KIP4030°/NA168x85x65mm160x75mm
WL111339.04.36.50COB14W910lm220~240VAC≥90Black36°5000KIP4030°/NA168x85x65mm160x75mm

WL111340 24W 168x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111340.02.12.30COB24W1500lm220~240VAC≥90White12°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.24.30COB24W1500lm220~240VAC≥90White24°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.36.30COB24W1500lm220~240VAC≥90White36°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.12.30COB24W1500lm220~240VAC≥90Black12°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.24.30COB24W1500lm220~240VAC≥90Black24°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.36.30COB24W1500lm220~240VAC≥90Black36°3000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.12.40COB24W1500lm220~240VAC≥90White12°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.24.40COB24W1500lm220~240VAC≥90White24°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.36.40COB24W1500lm220~240VAC≥90White36°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.12.40COB24W1500lm220~240VAC≥90Black12°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.24.40COB24W1500lm220~240VAC≥90Black24°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.36.40COB24W1500lm220~240VAC≥90Black36°4000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.12.50COB24W1500lm220~240VAC≥90White12°5000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.24.50COB24W1500lm220~240VAC≥90White24°5000KIP4030°/NA168x85x65mm160x75mm
WL111340.02.36.50COB24W1500lm220~240VAC≥90White36°5000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.12.50COB24W1500lm220~240VAC≥90Black12°5000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.24.50COB24W1500lm220~240VAC≥90Black24°5000KIP4030°/NA168x85x65mm160x75mm
WL111340.04.36.50COB24W1500lm220~240VAC≥90Black36°5000KIP4030°/NA168x85x65mm160x75mm
