AKIRA DEEP ADJ

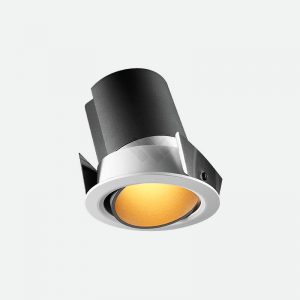

WL111139-WL111140_800x800

AKIRA DEEP ADJ

AKIRA series developed a series of lighting fixtures, specially designed to balance the direct and indirect lighting

Reflector electroplated with black nickel absorb the light to prevent the reflector from making secondary glare

Lighting source deeply hided, luminous range contraction, to ensure that people cannot see the light source directly in a certain visual range, and to reduce the direct glare

Lighting optical system consist with two reflector, present a reasonable light distribution

Description

WL111139 8W Ø86

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111139.02.15.27COB8W460lm100-240VAC≥95WH15°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.24.27COB8W460lm100-240VAC≥95WH24°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.36.27COB8W460lm100-240VAC≥95WH36°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.15.27COB8W460lm100-240VAC≥95BK15°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.24.27COB8W460lm100-240VAC≥95BK24°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.36.27COB8W460lm100-240VAC≥95BK36°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.15.40COB8W483lm100-240VAC≥95WH15°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.24.40COB8W483lm100-240VAC≥95WH24°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.36.40COB8W483lm100-240VAC≥95WH36°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.15.40COB8W483lm100-240VAC≥95BK15°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.24.40COB8W483lm100-240VAC≥95BK24°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.36.40COB8W483lm100-240VAC≥95BK36°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.15.50COB8W507lm100-240VAC≥95WH15°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.24.50COB8W507lm100-240VAC≥95WH24°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.02.36.50COB8W507lm100-240VAC≥95WH36°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.15.50COB8W507lm100-240VAC≥95BK15°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.24.50COB8W507lm100-240VAC≥95BK24°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111139.04.36.50COB8W507lm100-240VAC≥95BK36°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue

WL111140 12W Ø86

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111140.02.15.27COB12W660lm100-240VAC≥95WH15°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.24.27COB12W660lm100-240VAC≥95WH24°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.36.27COB12W660lm100-240VAC≥95WH36°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.15.27COB12W660lm100-240VAC≥95BK15°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.24.27COB12W660lm100-240VAC≥95BK24°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.36.27COB12W660lm100-240VAC≥95BK36°2700KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.15.40COB12W693lm100-240VAC≥95WH15°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.24.40COB12W693lm100-240VAC≥95WH24°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.36.40COB12W693lm100-240VAC≥95WH36°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.15.40COB12W693lm100-240VAC≥95BK15°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.24.40COB12W693lm100-240VAC≥95BK24°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.36.40COB12W693lm100-240VAC≥95BK36°4000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.15.50COB12W728lm100-240VAC≥95WH15°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.24.50COB12W728lm100-240VAC≥95WH24°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.02.36.50COB12W728lm100-240VAC≥95WH36°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.15.50COB12W728lm100-240VAC≥95BK15°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.24.50COB12W728lm100-240VAC≥95BK24°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
WL111140.04.36.50COB12W728lm100-240VAC≥95BK36°5000KIP2030°/355°Ø86x91mmØ75mmDatasheet
IES File
Catalogue
