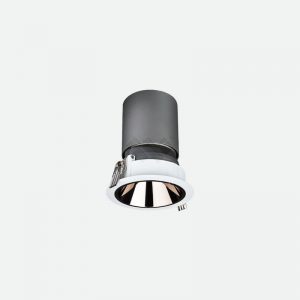

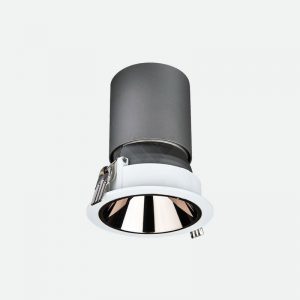

AKIRA HIGH POWER FXD

WL111147-WL111148_800x800

AKIRA HIGH POWER FXD

AKIRA series developed a series of lighting fixtures, specially designed to balance the direct and indirect lighting

Reflector electroplated with black nickel absorb the light to prevent the reflector from making secondary glare

Lighting source deeply hided, luminous range contraction, to ensure that people cannot see the light source directly in a certain visual range, and to reduce the direct glare

Lighting optical system consist with two reflector, present a reasonable light distribution

Description

WL111147 20W Ø111

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingDimensionCutoutDownloads
WL111147.02.15.27COB20W1500lm100-240VAC≥95WH15°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.24.27COB20W1500lm100-240VAC≥95WH24°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.36.27COB20W1500lm100-240VAC≥95WH36°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.60.27COB20W1500lm100-240VAC≥95WH60°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.15.27COB20W1500lm100-240VAC≥95BK15°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.24.27COB20W1500lm100-240VAC≥95BK24°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.36.27COB20W1500lm100-240VAC≥95BK36°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.60.27COB20W1500lm100-240VAC≥95BK60°2700KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.15.40COB20W1575lm100-240VAC≥95WH15°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.24.40COB20W1575lm100-240VAC≥95WH24°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.36.40COB20W1575lm100-240VAC≥95WH36°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.60.40COB20W1575lm100-240VAC≥95WH60°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.15.40COB20W1575lm100-240VAC≥95BK15°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.24.40COB20W1575lm100-240VAC≥95BK24°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.36.40COB20W1575lm100-240VAC≥95BK36°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.60.40COB20W1575lm100-240VAC≥95BK60°4000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.15.50COB20W1654lm100-240VAC≥95WH15°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.24.50COB20W1654lm100-240VAC≥95WH24°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.36.50COB20W1654lm100-240VAC≥95WH36°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.02.60.50COB20W1654lm100-240VAC≥95WH60°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.15.50COB20W1654lm100-240VAC≥95BK15°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.24.50COB20W1654lm100-240VAC≥95BK24°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.36.50COB20W1654lm100-240VAC≥95BK36°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111147.04.60.50COB20W1654lm100-240VAC≥95BK60°5000KIP20Ø111x133mmØ95mmDatasheet
IES File
Catalogue

WL111148 25W Ø111

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111148.02.15.27COB25W1800lm100-240VAC≥95WH15°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.24.27COB25W1800lm100-240VAC≥95WH24°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.38.27COB25W1800lm100-240VAC≥95WH38°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.60.27COB25W1800lm100-240VAC≥95WH60°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.15.27COB25W1800lm100-240VAC≥95BK15°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.24.27COB25W1800lm100-240VAC≥95BK24°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.38.27COB25W1800lm100-240VAC≥95BK38°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.60.27COB25W1800lm100-240VAC≥95BK60°2700KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.15.40COB25W1890lm100-240VAC≥95WH15°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.24.40COB25W1890lm100-240VAC≥95WH24°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.38.40COB25W1890lm100-240VAC≥95WH38°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.60.40COB25W1890lm100-240VAC≥95WH60°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.15.40COB25W1890lm100-240VAC≥95BK15°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.24.40COB25W1890lm100-240VAC≥95BK24°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.38.40COB25W1890lm100-240VAC≥95BK38°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.60.40COB25W1890lm100-240VAC≥95BK60°4000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.15.50COB25W1985lm100-240VAC≥95WH15°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.24.50COB25W1985lm100-240VAC≥95WH24°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.38.50COB25W1985lm100-240VAC≥95WH38°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.02.60.50COB25W1985lm100-240VAC≥95WH60°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.15.50COB25W1985lm100-240VAC≥95BK15°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.24.50COB25W1985lm100-240VAC≥95BK24°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.38.50COB25W1985lm100-240VAC≥95BK38°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
WL111148.04.60.50COB25W1985lm100-240VAC≥95BK60°5000KIP2030°/355°Ø111x133mmØ95mmDatasheet
IES File
Catalogue
