AKIRA PIN HOLE ADJ

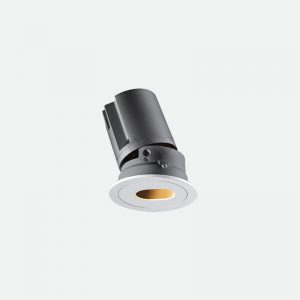

WL111122-WL111123_800x800

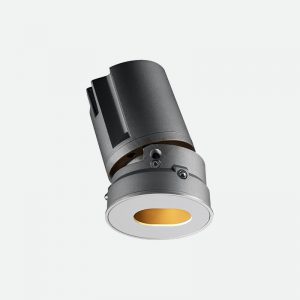

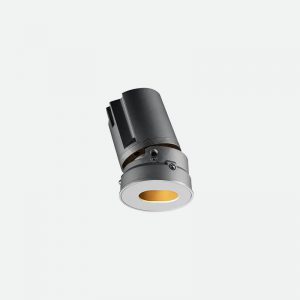

WL111133-WL111134_800x800

AKIRA PIN HOLE ADJ

AKIRA series developed a series of lighting fixtures, specially designed to balance the direct and indirect lighting

Reflector electroplated with black nickel absorb the light to prevent the reflector from making secondary glare

Lighting source deeply hided, luminous range contraction, to ensure that people cannot see the light source directly in a certain visual range, and to reduce the direct glare

Lighting optical system consist with two reflector, present a reasonable light distribution

Description

WL111122 8W Ø85

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111122.02.15.27COB8W300lm100-240VAC≥95WH15°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.02.24.27COB8W300lm100-240VAC≥95WH24°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.15.27COB8W300lm100-240VAC≥95BK15°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.24.27COB8W300lm100-240VAC≥95BK24°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.02.15.40COB8W315lm100-240VAC≥95WH15°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.02.24.40COB8W315lm100-240VAC≥95WH24°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.15.40COB8W315lm100-240VAC≥95BK15°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.24.40COB8W315lm100-240VAC≥95BK24°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.02.15.50COB8W330lm100-240VAC≥95WH15°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.02.24.50COB8W330lm100-240VAC≥95WH24°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.15.50COB8W330lm100-240VAC≥95BK15°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111122.04.24.50COB8W330lm100-240VAC≥95BK24°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue

WL111123 12W Ø85

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111123.02.15.27COB12W435lm100-240VAC≥95WH15°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.02.24.27COB12W435lm100-240VAC≥95WH24°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.15.27COB12W435lm100-240VAC≥95BK15°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.24.27COB12W435lm100-240VAC≥95BK24°2700KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.02.15.40COB12W456lm100-240VAC≥95WH15°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.02.24.40COB12W456lm100-240VAC≥95WH24°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.15.40COB12W456lm100-240VAC≥95BK15°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.24.40COB12W456lm100-240VAC≥95BK24°4000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.02.15.50COB12W480lm100-240VAC≥95WH15°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.02.24.50COB12W480lm100-240VAC≥95WH24°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.15.50COB12W480lm100-240VAC≥95BK15°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue
WL111123.04.24.50COB12W480lm100-240VAC≥95BK24°5000KIP2030°/355°Ø85x110mmØ75mmDatasheet
IES File
Catalogue

WL111133 8W Ø114

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111133.02.15.27COB8W300lm100-240VAC≥95WH15°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.02.24.27COB8W300lm100-240VAC≥95WH24°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.15.27COB8W300lm100-240VAC≥95BK15°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.24.27COB8W300lm100-240VAC≥95BK24°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.02.15.40COB8W315lm100-240VAC≥95WH15°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.02.24.40COB8W315lm100-240VAC≥95WH24°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.15.40COB8W315lm100-240VAC≥95BK15°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.24.40COB8W315lm100-240VAC≥95BK24°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.02.15.50COB8W330lm100-240VAC≥95WH15°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.02.24.50COB8W330lm100-240VAC≥95WH24°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.15.50COB8W330lm100-240VAC≥95BK15°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111133.04.24.50COB8W330lm100-240VAC≥95BK24°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue

WL111134 12W Ø114

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingTilt/RotateDimensionCutoutDownloads
WL111134.02.15.27COB12W435lm100-240VAC≥95WH15°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.02.24.27COB12W435lm100-240VAC≥95WH24°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.15.27COB12W435lm100-240VAC≥95BK15°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.24.27COB12W435lm100-240VAC≥95BK24°2700KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.02.15.40COB12W456lm100-240VAC≥95WH15°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.02.24.40COB12W456lm100-240VAC≥95WH24°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.15.40COB12W456lm100-240VAC≥95BK15°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.24.40COB12W456lm100-240VAC≥95BK24°4000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.02.15.50COB12W480lm100-240VAC≥95WH15°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.02.24.50COB12W480lm100-240VAC≥95WH24°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.15.50COB12W480lm100-240VAC≥95BK15°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
WL111134.04.24.50COB12W480lm100-240VAC≥95BK24°5000KIP2030°/355°Ø114x110mmØ80mmDatasheet
IES File
Catalogue
