AKIRA PIN HOLE FXD

AKIRA series developed a series of lighting fixtures, specially designed to balance the direct and indirect lighting

Reflector electroplated with black nickel absorb the light to prevent the reflector from making secondary glare

Lighting source deeply hided, luminous range contraction, to ensure that people cannot see the light source directly in a certain visual range, and to reduce the direct glare

Lighting optical system consist with two reflector, present a reasonable light distribution

Description

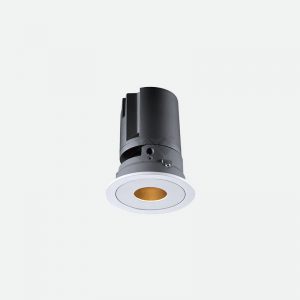

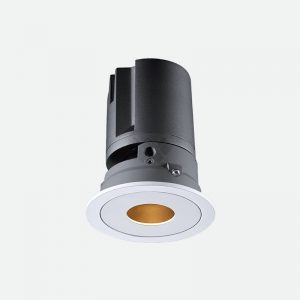

WL111124 8W Ø85

Product CodeLEDPowerLumenCRIFinishBeam AngleCCTIP RatingDimensionCutoutDownloadsInput
WL111124.02.15.27COB8W300lm≥95WH15°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.02.24.27COB8W300lm≥95WH24°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.15.27COB8W300lm≥95BK15°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.24.27COB8W300lm≥95BK24°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.02.15.40COB8W315lm≥95WH15°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.02.24.40COB8W315lm≥95WH24°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.15.40COB8W315lm≥95BK15°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.24.40COB8W315lm≥95BK24°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.02.15.50COB8W330lm≥95WH15°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.02.24.50COB8W330lm≥95WH24°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.15.50COB8W330lm≥95BK15°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC
WL111124.04.24.50COB8W330lm≥95BK24°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
100-240VAC

WL111125 12W Ø85

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingDimensionCutoutDownloads
WL111125.02.15.27COB12W370lm100-240VAC≥95WH15°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.02.24.27COB12W370lm100-240VAC≥95WH24°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.15.27COB12W370lm100-240VAC≥95BK15°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.24.27COB12W370lm100-240VAC≥95BK24°2700KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.02.15.40COB12W388lm100-240VAC≥95WH15°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.02.24.40COB12W388lm100-240VAC≥95WH24°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.15.40COB12W388lm100-240VAC≥95BK15°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.24.40COB12W388lm100-240VAC≥95BK24°4000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.02.15.50COB12W408lm100-240VAC≥95WH15°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.02.24.50COB12W408lm100-240VAC≥95WH24°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.15.50COB12W408lm100-240VAC≥95BK15°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue
WL111125.04.24.50COB12W408lm100-240VAC≥95BK24°5000KIP20Ø85x105mmØ75mmDatasheet
IES File
Catalogue

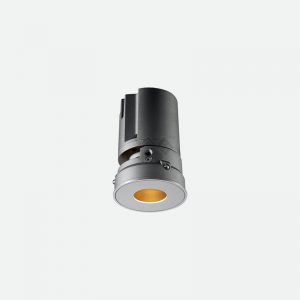

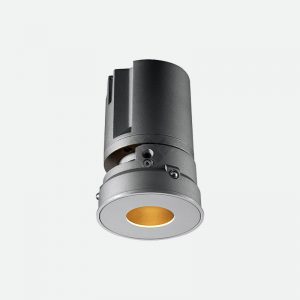

WL111135 8W Ø114

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingDimensionCutoutDownloads
WL111135.02.15.27COB8W300lm100-240VAC≥95WH15°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.02.24.27COB8W300lm100-240VAC≥95WH24°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.15.27COB8W300lm100-240VAC≥95BK15°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.24.27COB8W300lm100-240VAC≥95BK24°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.02.15.40COB8W315lm100-240VAC≥95WH15°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.02.24.40COB8W315lm100-240VAC≥95WH24°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.15.40COB8W315lm100-240VAC≥95BK15°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.24.40COB8W315lm100-240VAC≥95BK24°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.02.15.50COB8W330lm100-240VAC≥95WH15°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.02.24.50COB8W330lm100-240VAC≥95WH24°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.15.50COB8W330lm100-240VAC≥95BK15°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111135.04.24.50COB8W330lm100-240VAC≥95BK24°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue

WL111136 12W Ø114

Product CodeLEDPowerLumenInputCRIFinishBeam AngleCCTIP RatingDimensionCutoutDownloads
WL111136.02.15.27COB12W370lm100-240VAC≥95WH15°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.02.24.27COB12W370lm100-240VAC≥95WH24°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.15.27COB12W370lm100-240VAC≥95BK15°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.24.27COB12W370lm100-240VAC≥95BK24°2700KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.02.15.40COB12W388lm100-240VAC≥95WH15°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.02.24.40COB12W388lm100-240VAC≥95WH24°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.15.40COB12W388lm100-240VAC≥95BK15°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.24.40COB12W388lm100-240VAC≥95BK24°4000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.02.15.50COB12W408lm100-240VAC≥95WH15°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.02.24.50COB12W408lm100-240VAC≥95WH24°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.15.50COB12W408lm100-240VAC≥95BK15°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
WL111136.04.24.50COB12W408lm100-240VAC≥95BK24°5000KIP20Ø114x105mmØ80mmDatasheet
IES File
Catalogue
