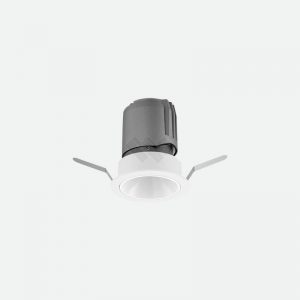

WL111254-WL111301-WL111303-WL111305_800x800

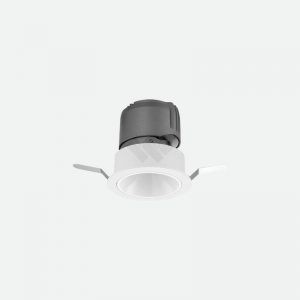

WL111307-WL111309-WL111311_800x800

BETTY RD FXD

BETTY series downlights adopts high efficiency CREE LED as a light source

Lamp body adopts split design and compact lamp structure with electroplating surface treatment art using the Nano dust proof technology

Deep bright anti-glare reflector design shading angles >30°, which creates a comfortable lighting environmental

Lifespan is up to 50,000 hrs

Easy to install, use stainless steel spring, safe and durable

0-10V, Dali, Triac dimmable

Description

WL111301 3W Ø65

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111301.02.12.30COB3W240lm220~240VAC≥90White12°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.24.30COB3W240lm220~240VAC≥90White24°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.36.30COB3W240lm220~240VAC≥90White36°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.50.30COB3W240lm220~240VAC≥90White50°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.12.30COB3W240lm220~240VAC≥90Black12°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.24.30COB3W240lm220~240VAC≥90Black24°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.36.30COB3W240lm220~240VAC≥90Black36°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.50.30COB3W240lm220~240VAC≥90Black50°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.12.40COB3W240lm220~240VAC≥90White12°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.24.40COB3W240lm220~240VAC≥90White24°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.36.40COB3W240lm220~240VAC≥90White36°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.50.40COB3W240lm220~240VAC≥90White50°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.12.40COB3W240lm220~240VAC≥90Black12°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.24.40COB3W240lm220~240VAC≥90Black24°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.36.40COB3W240lm220~240VAC≥90Black36°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.50.40COB3W240lm220~240VAC≥90Black50°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.12.50COB3W240lm220~240VAC≥90White12°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.24.50COB3W240lm220~240VAC≥90White24°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.36.50COB3W240lm220~240VAC≥90White36°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.02.50.50COB3W240lm220~240VAC≥90White50°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.12.50COB3W240lm220~240VAC≥90Black12°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.24.50COB3W240lm220~240VAC≥90Black24°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.36.50COB3W240lm220~240VAC≥90Black36°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111301.04.50.50COB3W240lm220~240VAC≥90Black50°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm

WL111303 7W Ø65

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111303.02.12.30COB7W560lm220~240VAC≥90White12°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.24.30COB7W560lm220~240VAC≥90White24°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.36.30COB7W560lm220~240VAC≥90White36°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.50.30COB7W560lm220~240VAC≥90White50°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.12.30COB7W560lm220~240VAC≥90Black12°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.24.30COB7W560lm220~240VAC≥90Black24°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.36.30COB7W560lm220~240VAC≥90Black36°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.50.30COB7W560lm220~240VAC≥90Black50°3000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.12.40COB7W560lm220~240VAC≥90White12°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.24.40COB7W560lm220~240VAC≥90White24°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.36.40COB7W560lm220~240VAC≥90White36°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.50.40COB7W560lm220~240VAC≥90White50°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.12.40COB7W560lm220~240VAC≥90Black12°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.24.40COB7W560lm220~240VAC≥90Black24°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.36.40COB7W560lm220~240VAC≥90Black36°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.50.40COB7W560lm220~240VAC≥90Black50°4000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.12.50COB7W560lm220~240VAC≥90White12°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.24.50COB7W560lm220~240VAC≥90White24°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.36.50COB7W560lm220~240VAC≥90White36°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.02.50.50COB7W560lm220~240VAC≥90White50°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.12.50COB7W560lm220~240VAC≥90Black12°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.24.50COB7W560lm220~240VAC≥90Black24°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.36.50COB7W560lm220~240VAC≥90Black36°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm
WL111303.04.50.50COB7W560lm220~240VAC≥90Black50°5000KIP20Ø65x76mm(Trim)
Ø85x76mm(Trimless)
Ø55mm

WL111254 10W Ø86

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111254.02.12.30COB10W800lm220~240VAC≥90White12°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.24.30COB10W800lm220~240VAC≥90White24°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.36.30COB10W800lm220~240VAC≥90White36°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.60.30COB10W800lm220~240VAC≥90White60°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.12.30COB10W800lm220~240VAC≥90Black12°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.24.30COB10W800lm220~240VAC≥90Black24°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.36.30COB10W800lm220~240VAC≥90Black36°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.60.30COB10W800lm220~240VAC≥90Black60°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.12.40COB10W800lm220~240VAC≥90White12°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.24.40COB10W800lm220~240VAC≥90White24°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.36.40COB10W800lm220~240VAC≥90White36°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.60.40COB10W800lm220~240VAC≥90White60°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.12.40COB10W800lm220~240VAC≥90Black12°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.24.40COB10W800lm220~240VAC≥90Black24°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.36.40COB10W800lm220~240VAC≥90Black36°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.60.40COB10W800lm220~240VAC≥90Black60°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.12.50COB10W800lm220~240VAC≥90White12°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.24.50COB10W800lm220~240VAC≥90White24°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.36.50COB10W800lm220~240VAC≥90White36°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.02.60.50COB10W800lm220~240VAC≥90White60°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.12.50COB10W800lm220~240VAC≥90Black12°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.24.50COB10W800lm220~240VAC≥90Black24°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.36.50COB10W800lm220~240VAC≥90Black36°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111254.04.60.50COB10W800lm220~240VAC≥90Black60°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm

WL111305 12W Ø86

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111305.02.12.30COB12W960lm220~240VAC≥90White12°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.24.30COB12W960lm220~240VAC≥90White24°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.36.30COB12W960lm220~240VAC≥90White36°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.50.30COB12W960lm220~240VAC≥90White50°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.12.30COB12W960lm220~240VAC≥90Black12°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.24.30COB12W960lm220~240VAC≥90Black24°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.36.30COB12W960lm220~240VAC≥90Black36°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.50.30COB12W960lm220~240VAC≥90Black50°3000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.12.40COB12W960lm220~240VAC≥90White12°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.24.40COB12W960lm220~240VAC≥90White24°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.36.40COB12W960lm220~240VAC≥90White36°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.50.40COB12W960lm220~240VAC≥90White50°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.12.40COB12W960lm220~240VAC≥90Black12°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.24.40COB12W960lm220~240VAC≥90Black24°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.36.40COB12W960lm220~240VAC≥90Black36°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.50.40COB12W960lm220~240VAC≥90Black50°4000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.12.50COB12W960lm220~240VAC≥90White12°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.24.50COB12W960lm220~240VAC≥90White24°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.36.50COB12W960lm220~240VAC≥90White36°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.02.50.50COB12W960lm220~240VAC≥90White50°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.12.50COB12W960lm220~240VAC≥90Black12°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.24.50COB12W960lm220~240VAC≥90Black24°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.36.50COB12W960lm220~240VAC≥90Black36°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm
WL111305.04.50.50COB12W960lm220~240VAC≥90Black50°5000KIP20Ø86x85mm(Trim)
Ø105x85mm(Trimless)
Ø75mm

WL111307 18W Ø106

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111307.02.12.30COB18W1440lm220~240VAC≥90White12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.24.30COB18W1440lm220~240VAC≥90White24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.36.30COB18W1440lm220~240VAC≥90White36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.50.30COB18W1440lm220~240VAC≥90White50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.12.30COB18W1440lm220~240VAC≥90Black12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.24.30COB18W1440lm220~240VAC≥90Black24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.36.30COB18W1440lm220~240VAC≥90Black36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.50.30COB18W1440lm220~240VAC≥90Black50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.12.40COB18W1440lm220~240VAC≥90White12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.24.40COB18W1440lm220~240VAC≥90White24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.36.40COB18W1440lm220~240VAC≥90White36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.50.40COB18W1440lm220~240VAC≥90White50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.12.40COB18W1440lm220~240VAC≥90Black12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.24.40COB18W1440lm220~240VAC≥90Black24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.36.40COB18W1440lm220~240VAC≥90Black36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.50.40COB18W1440lm220~240VAC≥90Black50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.12.50COB18W1440lm220~240VAC≥90White12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.24.50COB18W1440lm220~240VAC≥90White24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.36.50COB18W1440lm220~240VAC≥90White36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.02.50.50COB18W1440lm220~240VAC≥90White50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.12.50COB18W1440lm220~240VAC≥90Black12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.24.50COB18W1440lm220~240VAC≥90Black24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.36.50COB18W1440lm220~240VAC≥90Black36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111307.04.50.50COB18W1440lm220~240VAC≥90Black50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm

WL111309 24W Ø106

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111309.02.12.30COB24W1920lm220~240VAC≥90White12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.24.30COB24W1920lm220~240VAC≥90White24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.36.30COB24W1920lm220~240VAC≥90White36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.50.30COB24W1920lm220~240VAC≥90White50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.12.30COB24W1920lm220~240VAC≥90Black12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.24.30COB24W1920lm220~240VAC≥90Black24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.36.30COB24W1920lm220~240VAC≥90Black36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.50.30COB24W1920lm220~240VAC≥90Black50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.12.40COB24W1920lm220~240VAC≥90White12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.24.40COB24W1920lm220~240VAC≥90White24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.36.40COB24W1920lm220~240VAC≥90White36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.50.40COB24W1920lm220~240VAC≥90White50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.12.40COB24W1920lm220~240VAC≥90Black12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.24.40COB24W1920lm220~240VAC≥90Black24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.36.40COB24W1920lm220~240VAC≥90Black36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.50.40COB24W1920lm220~240VAC≥90Black50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.12.50COB24W1920lm220~240VAC≥90White12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.24.50COB24W1920lm220~240VAC≥90White24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.36.50COB24W1920lm220~240VAC≥90White36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.02.50.50COB24W1920lm220~240VAC≥90White50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.12.50COB24W1920lm220~240VAC≥90Black12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.24.50COB24W1920lm220~240VAC≥90Black24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.36.50COB24W1920lm220~240VAC≥90Black36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111309.04.50.50COB24W1920lm220~240VAC≥90Black50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm

WL111311 30W Ø106

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111311.02.12.30COB30W2400lm220~240VAC≥90White12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.24.30COB30W2400lm220~240VAC≥90White24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.36.30COB30W2400lm220~240VAC≥90White36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.50.30COB30W2400lm220~240VAC≥90White50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.12.30COB30W2400lm220~240VAC≥90Black12°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.24.30COB30W2400lm220~240VAC≥90Black24°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.36.30COB30W2400lm220~240VAC≥90Black36°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.50.30COB30W2400lm220~240VAC≥90Black50°3000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.12.40COB30W2400lm220~240VAC≥90White12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.24.40COB30W2400lm220~240VAC≥90White24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.36.40COB30W2400lm220~240VAC≥90White36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.50.40COB30W2400lm220~240VAC≥90White50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.12.40COB30W2400lm220~240VAC≥90Black12°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.24.40COB30W2400lm220~240VAC≥90Black24°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.36.40COB30W2400lm220~240VAC≥90Black36°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.50.40COB30W2400lm220~240VAC≥90Black50°4000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.12.50COB30W2400lm220~240VAC≥90White12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.24.50COB30W2400lm220~240VAC≥90White24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.36.50COB30W2400lm220~240VAC≥90White36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.02.50.50COB30W2400lm220~240VAC≥90White50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.12.50COB30W2400lm220~240VAC≥90Black12°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.24.50COB30W2400lm220~240VAC≥90Black24°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.36.50COB30W2400lm220~240VAC≥90Black36°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
WL111311.04.50.50COB30W2400lm220~240VAC≥90Black50°5000KIP20Ø106x114mm(Trim)
Ø125x114mm(Trimless)
Ø95mm
