CARSON ADJ

CARSON Mini spot light adopts high brightness OSRAM 3030 LED as a light source.

Anti-glare designed lamp body, shading angle ­30°, UGR‑19

Use good quality aluminum alloy die-casting lamp body, high efficiency heat dissipation.

With professional optical lens, which gives higher lumen efficiency

Available in three variety of reflector as optional

Clips installation design, simple and easy installation

Description

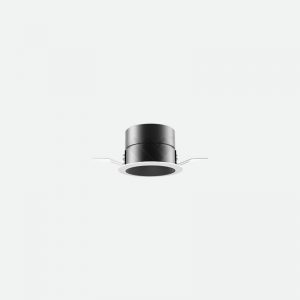

WL111222 2W Ø50

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111222.02.20.30COB2W120lm220~240VAC≥90White20°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.30.30COB2W120lm220~240VAC≥90White30°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.45.30COB2W120lm220~240VAC≥90White45°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.20.30COB2W120lm220~240VAC≥90Black20°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.30.30COB2W120lm220~240VAC≥90Black30°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.45.30COB2W120lm220~240VAC≥90Black45°3000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.20.40COB2W120lm220~240VAC≥90White20°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.30.40COB2W120lm220~240VAC≥90White30°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.45.40COB2W120lm220~240VAC≥90White45°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.20.40COB2W120lm220~240VAC≥90Black20°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.30.40COB2W120lm220~240VAC≥90Black30°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.45.40COB2W120lm220~240VAC≥90Black45°4000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.20.50COB2W120lm220~240VAC≥90White20°5000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.30.50COB2W120lm220~240VAC≥90White30°5000KIP2025°/NAØ50x32mmØ45mm
WL111222.02.45.50COB2W120lm220~240VAC≥90White45°5000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.20.50COB2W120lm220~240VAC≥90Black20°5000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.30.50COB2W120lm220~240VAC≥90Black30°5000KIP2025°/NAØ50x32mmØ45mm
WL111222.04.45.50COB2W120lm220~240VAC≥90Black45°5000KIP2025°/NAØ50x32mmØ45mm

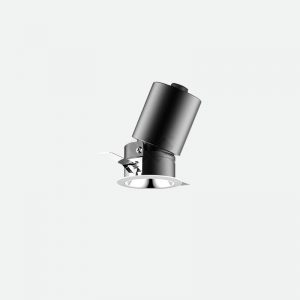

WL111224 3W Ø50

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111224.02.15.30COB3W195lm220~240VAC≥90White15°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.30.30COB3W195lm220~240VAC≥90White30°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.36.30COB3W195lm220~240VAC≥90White36°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.15.30COB3W195lm220~240VAC≥90Black15°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.30.30COB3W195lm220~240VAC≥90Black30°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.36.30COB3W195lm220~240VAC≥90Black36°3000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.15.40COB3W195lm220~240VAC≥90White15°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.30.40COB3W195lm220~240VAC≥90White30°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.36.40COB3W195lm220~240VAC≥90White36°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.15.40COB3W195lm220~240VAC≥90Black15°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.30.40COB3W195lm220~240VAC≥90Black30°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.36.40COB3W195lm220~240VAC≥90Black36°4000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.15.50COB3W195lm220~240VAC≥90White15°5000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.30.50COB3W195lm220~240VAC≥90White30°5000KIP2025°/NAØ50x62mmØ45mm
WL111224.02.36.50COB3W195lm220~240VAC≥90White36°5000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.15.50COB3W195lm220~240VAC≥90Black15°5000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.30.50COB3W195lm220~240VAC≥90Black30°5000KIP2025°/NAØ50x62mmØ45mm
WL111224.04.36.50COB3W195lm220~240VAC≥90Black36°5000KIP2025°/NAØ50x62mmØ45mm

WL111226 5W Ø50

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111226.02.15.30COB5W300lm220~240VAC≥90White15°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.30.30COB5W300lm220~240VAC≥90White30°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.36.30COB5W300lm220~240VAC≥90White36°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.15.30COB5W300lm220~240VAC≥90Black15°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.30.30COB5W300lm220~240VAC≥90Black30°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.36.30COB5W300lm220~240VAC≥90Black36°3000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.15.40COB5W300lm220~240VAC≥90White15°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.30.40COB5W300lm220~240VAC≥90White30°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.36.40COB5W300lm220~240VAC≥90White36°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.15.40COB5W300lm220~240VAC≥90Black15°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.30.40COB5W300lm220~240VAC≥90Black30°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.36.40COB5W300lm220~240VAC≥90Black36°4000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.15.50COB5W300lm220~240VAC≥90White15°5000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.30.50COB5W300lm220~240VAC≥90White30°5000KIP2025°/NAØ50x62mmØ45mm
WL111226.02.36.50COB5W300lm220~240VAC≥90White36°5000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.15.50COB5W300lm220~240VAC≥90Black15°5000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.30.50COB5W300lm220~240VAC≥90Black30°5000KIP2025°/NAØ50x62mmØ45mm
WL111226.04.36.50COB5W300lm220~240VAC≥90Black36°5000KIP2025°/NAØ50x62mmØ45mm

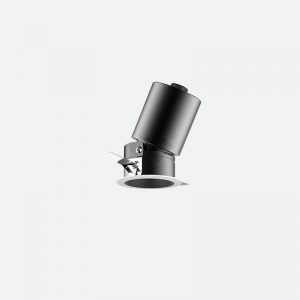

WL111228 8W Ø50

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111228.02.15.30COB8W480lm220~240VAC≥90White15°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.30.30COB8W480lm220~240VAC≥90White30°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.36.30COB8W480lm220~240VAC≥90White36°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.15.30COB8W480lm220~240VAC≥90Black15°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.30.30COB8W480lm220~240VAC≥90Black30°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.36.30COB8W480lm220~240VAC≥90Black36°3000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.15.40COB8W480lm220~240VAC≥90White15°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.30.40COB8W480lm220~240VAC≥90White30°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.36.40COB8W480lm220~240VAC≥90White36°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.15.40COB8W480lm220~240VAC≥90Black15°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.30.40COB8W480lm220~240VAC≥90Black30°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.36.40COB8W480lm220~240VAC≥90Black36°4000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.15.50COB8W480lm220~240VAC≥90White15°5000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.30.50COB8W480lm220~240VAC≥90White30°5000KIP2025°/NAØ50x74mmØ45mm
WL111228.02.36.50COB8W480lm220~240VAC≥90White36°5000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.15.50COB8W480lm220~240VAC≥90Black15°5000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.30.50COB8W480lm220~240VAC≥90Black30°5000KIP2025°/NAØ50x74mmØ45mm
WL111228.04.36.50COB8W480lm220~240VAC≥90Black36°5000KIP2025°/NAØ50x74mmØ45mm
