WL221004-WL221005_800x800

CLARNIA TUBE

Clarnia Series adopts high Lumen CITIZEN led as a light source

Track light for euro standard 3 circuit tracks.

Available in 6 watts and 4 different size

Light head tilt 90° and rotate through 355°

Housing made of die-cast aluminium highly pure powder coating paint.

Available in 3 different colours for your convenience

High power and quality COB mounted

Reflector in vacuum aluminium plated PC that can be easily and manually be replaced without using any tool.

The driver is included and integrated into the adapter

Honeycomb, clear or frosted glass options for the whole range.

Dimming with DALI and 0-10V

SKU: WL221000, WL221001, WL221002, WL221003, WL221004, WL221005 Category: Tag:

Description

led track light luminaire

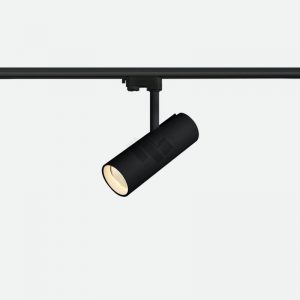

WL221000 10W Ø60

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221000.02.12.30COB10W900lm100~240VAC≥90WH12°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.24.30COB10W900lm100~240VAC≥90WH24°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.36.30COB10W900lm100~240VAC≥90WH36°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.12.30COB10W900lm100~240VAC≥90BK12°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.24.30COB10W900lm100~240VAC≥90BK24°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.36.30COB10W900lm100~240VAC≥90BK36°3000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.12.40COB10W900lm100~240VAC≥90WH12°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.24.40COB10W900lm100~240VAC≥90WH24°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.36.40COB10W900lm100~240VAC≥90WH36°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.12.40COB10W900lm100~240VAC≥90BK12°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.24.40COB10W900lm100~240VAC≥90BK24°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.36.40COB10W900lm100~240VAC≥90BK36°4000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.12.50COB10W900lm100~240VAC≥90WH12°5000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.24.50COB10W900lm100~240VAC≥90WH24°5000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.02.36.50COB10W900lm100~240VAC≥90WH36°5000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.12.50COB10W900lm100~240VAC≥90BK12°5000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.24.50COB10W900lm100~240VAC≥90BK24°5000KIP2090°/355°Ø60x165mm3 Circuit Track
WL221000.04.36.50COB10W900lm100~240VAC≥90BK36°5000KIP2090°/355°Ø60x165mm3 Circuit Track

led focus lighting manufacturer dubai

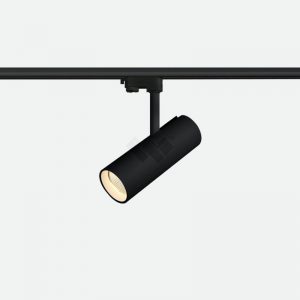

WL221001 15W Ø70

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221001.02.12.30COB15W1350lm100~240VAC≥90WH12°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.24.30COB15W1350lm100~240VAC≥90WH24°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.36.30COB15W1350lm100~240VAC≥90WH36°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.60.30COB15W1350lm100~240VAC≥90WH60°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.12.30COB15W1350lm100~240VAC≥90BK12°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.24.30COB15W1350lm100~240VAC≥90BK24°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.36.30COB15W1350lm100~240VAC≥90BK36°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.60.30COB15W1350lm100~240VAC≥90BK60°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.12.40COB15W1350lm100~240VAC≥90WH12°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.24.40COB15W1350lm100~240VAC≥90WH24°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.36.40COB15W1350lm100~240VAC≥90WH36°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.60.40COB15W1350lm100~240VAC≥90WH60°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.12.40COB15W1350lm100~240VAC≥90BK12°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.24.40COB15W1350lm100~240VAC≥90BK24°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.36.40COB15W1350lm100~240VAC≥90BK36°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.60.40COB15W1350lm100~240VAC≥90BK60°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.12.50COB15W1350lm100~240VAC≥90WH12°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.24.50COB15W1350lm100~240VAC≥90WH24°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.36.50COB15W1350lm100~240VAC≥90WH36°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.02.60.50COB15W1350lm100~240VAC≥90WH60°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.12.50COB15W1350lm100~240VAC≥90BK12°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.24.50COB15W1350lm100~240VAC≥90BK24°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.36.50COB15W1350lm100~240VAC≥90BK36°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221001.04.60.50COB15W1350lm100~240VAC≥90BK60°5000KIP2090°/355°Ø70x210mm3 Circuit Track

led focus lighting manufacturer dubai

WL221002 20W Ø70

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221002.02.12.30COB20W1800lm100~240VAC≥90WH12°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.24.30COB20W1800lm100~240VAC≥90WH24°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.36.30COB20W1800lm100~240VAC≥90WH36°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.60.30COB20W1800lm100~240VAC≥90WH60°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.12.30COB20W1800lm100~240VAC≥90BK12°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.24.30COB20W1800lm100~240VAC≥90BK24°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.36.30COB20W1800lm100~240VAC≥90BK36°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.60.30COB20W1800lm100~240VAC≥90BK60°3000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.12.40COB20W1800lm100~240VAC≥90WH12°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.24.40COB20W1800lm100~240VAC≥90WH24°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.36.40COB20W1800lm100~240VAC≥90WH36°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.60.40COB20W1800lm100~240VAC≥90WH60°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.12.40COB20W1800lm100~240VAC≥90BK12°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.24.40COB20W1800lm100~240VAC≥90BK24°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.36.40COB20W1800lm100~240VAC≥90BK36°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.60.40COB20W1800lm100~240VAC≥90BK60°4000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.12.50COB20W1800lm100~240VAC≥90WH12°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.24.50COB20W1800lm100~240VAC≥90WH24°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.36.50COB20W1800lm100~240VAC≥90WH36°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.02.60.50COB20W1800lm100~240VAC≥90WH60°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.12.50COB20W1800lm100~240VAC≥90BK12°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.24.50COB20W1800lm100~240VAC≥90BK24°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.36.50COB20W1800lm100~240VAC≥90BK36°5000KIP2090°/355°Ø70x210mm3 Circuit Track
WL221002.04.60.50COB20W1800lm100~240VAC≥90BK60°5000KIP2090°/355°Ø70x210mm3 Circuit Track

led track focus lighting solutions

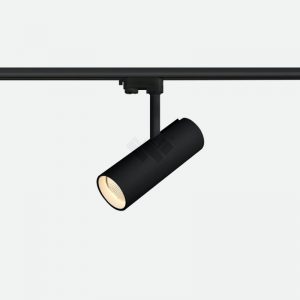

WL221003 28W Ø85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221003.02.12.30COB28W2520lm100~240VAC≥90WH12°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.24.30COB28W2520lm100~240VAC≥90WH24°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.36.30COB28W2520lm100~240VAC≥90WH36°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.45.30COB28W2520lm100~240VAC≥90WH45°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.60.30COB28W2520lm100~240VAC≥90WH60°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.12.30COB28W2520lm100~240VAC≥90BK12°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.24.30COB28W2520lm100~240VAC≥90BK24°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.36.30COB28W2520lm100~240VAC≥90BK36°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.45.30COB28W2520lm100~240VAC≥90BK45°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.60.30COB28W2520lm100~240VAC≥90BK60°3000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.12.40COB28W2520lm100~240VAC≥90WH12°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.24.40COB28W2520lm100~240VAC≥90WH24°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.36.40COB28W2520lm100~240VAC≥90WH36°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.45.40COB28W2520lm100~240VAC≥90WH45°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.60.40COB28W2520lm100~240VAC≥90WH60°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.12.40COB28W2520lm100~240VAC≥90BK12°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.24.40COB28W2520lm100~240VAC≥90BK24°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.36.40COB28W2520lm100~240VAC≥90BK36°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.45.40COB28W2520lm100~240VAC≥90BK45°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.60.40COB28W2520lm100~240VAC≥90BK60°4000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.12.50COB28W2520lm100~240VAC≥90WH12°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.24.50COB28W2520lm100~240VAC≥90WH24°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.36.50COB28W2520lm100~240VAC≥90WH36°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.45.50COB28W2520lm100~240VAC≥90WH45°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.02.60.50COB28W2520lm100~240VAC≥90WH60°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.12.50COB28W2520lm100~240VAC≥90BK12°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.24.50COB28W2520lm100~240VAC≥90BK24°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.36.50COB28W2520lm100~240VAC≥90BK36°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.45.50COB28W2520lm100~240VAC≥90BK45°5000KIP2090°/355°Ø85x235mm3 Circuit Track
WL221003.04.60.50COB28W2520lm100~240VAC≥90BK60°5000KIP2090°/355°Ø85x235mm3 Circuit Track

Clarnia led track and spot lighting

WL221004 42W Ø95

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221004.02.12.30COB42W3780lm100~240VAC≥90White12°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.24.30COB42W3780lm100~240VAC≥90White24°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.36.30COB42W3780lm100~240VAC≥90White36°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.60.30COB42W3780lm100~240VAC≥90White60°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.12.30COB42W3780lm100~240VAC≥90Black12°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.24.30COB42W3780lm100~240VAC≥90Black24°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.36.30COB42W3780lm100~240VAC≥90Black36°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.60.30COB42W3780lm100~240VAC≥90Black60°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.12.40COB42W3780lm100~240VAC≥90White12°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.24.40COB42W3780lm100~240VAC≥90White24°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.36.40COB42W3780lm100~240VAC≥90White36°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.60.40COB42W3780lm100~240VAC≥90White60°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.12.40COB42W3780lm100~240VAC≥90Black12°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.24.40COB42W3780lm100~240VAC≥90Black24°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.36.40COB42W3780lm100~240VAC≥90Black36°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.60.40COB42W3780lm100~240VAC≥90Black60°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.12.50COB42W3780lm100~240VAC≥90White12°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.24.50COB42W3780lm100~240VAC≥90White24°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.36.50COB42W3780lm100~240VAC≥90White36°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.02.60.50COB42W3780lm100~240VAC≥90White60°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.12.50COB42W3780lm100~240VAC≥90Black12°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.24.50COB42W3780lm100~240VAC≥90Black24°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.36.50COB42W3780lm100~240VAC≥90Black36°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221004.04.60.50COB42W3780lm100~240VAC≥90Black60°5000KIP2090°/355°Ø100x342mm3 Circuit Track

Clarnia led track and spot lighting

WL221005 50W Ø95

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionInstallation
WL221005.02.12.30COB50W4500lm100~240VAC≥90WH12°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.24.30COB50W4500lm100~240VAC≥90WH24°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.36.30COB50W4500lm100~240VAC≥90WH36°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.60.30COB50W4500lm100~240VAC≥90WH60°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.12.30COB50W4500lm100~240VAC≥90BK12°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.24.30COB50W4500lm100~240VAC≥90BK24°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.36.30COB50W4500lm100~240VAC≥90BK36°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.60.30COB50W4500lm100~240VAC≥90BK60°3000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.12.40COB50W4500lm100~240VAC≥90WH12°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.24.40COB50W4500lm100~240VAC≥90WH24°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.36.40COB50W4500lm100~240VAC≥90WH36°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.60.40COB50W4500lm100~240VAC≥90WH60°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.12.40COB50W4500lm100~240VAC≥90BK12°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.24.40COB50W4500lm100~240VAC≥90BK24°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.36.40COB50W4500lm100~240VAC≥90BK36°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.60.40COB50W4500lm100~240VAC≥90BK60°4000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.12.50COB50W4500lm100~240VAC≥90WH12°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.24.50COB50W4500lm100~240VAC≥90WH24°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.36.50COB50W4500lm100~240VAC≥90WH36°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.02.60.50COB50W4500lm100~240VAC≥90WH60°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.12.50COB50W4500lm100~240VAC≥90BK12°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.24.50COB50W4500lm100~240VAC≥90BK24°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.36.50COB50W4500lm100~240VAC≥90BK36°5000KIP2090°/355°Ø100x342mm3 Circuit Track
WL221005.04.60.50COB50W4500lm100~240VAC≥90BK60°5000KIP2090°/355°Ø100x342mm3 Circuit Track
