Products

WL771004-WL771005-WL771006-WL771007_800x800

FEAT 16

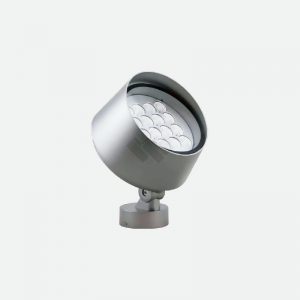

FEAT series flood light adopt American CREE original LED as light source with high lumen output which gives excellent consistency of light color

Adopts patent owned design, fashion and beautiful appearance.

Adopt isolated two bodies design could have the separate heat dissipation fully ensure the stability and long lifespan of LED light

Luminaire made with high pressure die casting aluminum surface with fluorine carbon spaying.

Luminaire shade adopts high strength toughened glass, resist the impact and friction

Constant current driver with PWM grey control installed inside

Powerful DMX512 interface adopts high reliable bus connect, all has the function of automatic addressing.

Description

WL771004 75W Ø260

Product CodeLEDPowerLumenInputCRIFinishBeam_ AngleCCTIP_RatingVerticalHorizontalPFDimension
WL771004.04.02.30HIGH_POWER75W8250lm100~240VAC≥80Black2.6°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.12.30HIGH_POWER75W8250lm100~240VAC≥80Black12°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.30.30HIGH_POWER75W8250lm100~240VAC≥80Black30°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.60.30HIGH_POWER75W8250lm100~240VAC≥80Black60°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A12.30HIGH_POWER75W8250lm100~240VAC≥80Black10°x70°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A13.30HIGH_POWER75W8250lm100~240VAC≥80Black5°x20°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.02.30HIGH_POWER75W8250lm100~240VAC≥80Grey2.6°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.12.30HIGH_POWER75W8250lm100~240VAC≥80Grey12°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.30.30HIGH_POWER75W8250lm100~240VAC≥80Grey30°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.60.30HIGH_POWER75W8250lm100~240VAC≥80Grey60°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A12.30HIGH_POWER75W8250lm100~240VAC≥80Grey10°x70°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A13.30HIGH_POWER75W8250lm100~240VAC≥80Grey5°x20°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.02.40HIGH_POWER75W8250lm100~240VAC≥80Black2.6°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.12.40HIGH_POWER75W8250lm100~240VAC≥80Black12°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.30.40HIGH_POWER75W8250lm100~240VAC≥80Black30°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.60.40HIGH_POWER75W8250lm100~240VAC≥80Black60°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A12.40HIGH_POWER75W8250lm100~240VAC≥80Black10°x70°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A13.40HIGH_POWER75W8250lm100~240VAC≥80Black5°x20°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.02.40HIGH_POWER75W8250lm100~240VAC≥80Grey2.6°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.12.40HIGH_POWER75W8250lm100~240VAC≥80Grey12°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.30.40HIGH_POWER75W8250lm100~240VAC≥80Grey30°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.60.40HIGH_POWER75W8250lm100~240VAC≥80Grey60°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A12.40HIGH_POWER75W8250lm100~240VAC≥80Grey10°x70°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A13.40HIGH_POWER75W8250lm100~240VAC≥80Grey5°x20°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.02.50HIGH_POWER75W8250lm100~240VAC≥80Black2.6°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.12.50HIGH_POWER75W8250lm100~240VAC≥80Black12°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.30.50HIGH_POWER75W8250lm100~240VAC≥80Black30°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.60.50HIGH_POWER75W8250lm100~240VAC≥80Black60°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A12.50HIGH_POWER75W8250lm100~240VAC≥80≥80Black10°x70°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.04.A13.50HIGH_POWER75W8250lm100~240VAC≥80Black5°x20°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.02.50HIGH_POWER75W8250lm100~240VAC≥80Grey2.6°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.12.50HIGH_POWER75W8250lm100~240VAC≥80Grey12°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.30.50HIGH_POWER75W8250lm100~240VAC≥80Grey30°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.60.50HIGH_POWER75W8250lm100~240VAC≥80Grey60°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A12.50HIGH_POWER75W8250lm100~240VAC≥80Grey10°x70°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771004.06.A13.50HIGH_POWER75W8250lm100~240VAC≥80Grey5°x20°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm

WL771005 60W Ø260

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_ RatingVerticalHorizontalPFDimension
WL771005.04.02.30HIGH_POWER60W5520lm100~240VAC≥80Black2.6°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.12.30HIGH_POWER60W5520lm100~240VAC≥80Black12°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.30.30HIGH_POWER60W5520lm100~240VAC≥80Black30°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.60.30HIGH_POWER60W5520lm100~240VAC≥80Black60°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A12.30HIGH_POWER60W5520lm100~240VAC≥80Black10°x70°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A13.30HIGH_POWER60W5520lm100~240VAC≥80Black5°x20°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.02.30HIGH_POWER60W5520lm100~240VAC≥80Grey2.6°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.12.30HIGH_POWER60W5520lm100~240VAC≥80Grey12°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.30.30HIGH_POWER60W5520lm100~240VAC≥80Grey30°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.60.30HIGH_POWER60W5520lm100~240VAC≥80Grey60°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A12.30HIGH_POWER60W5520lm100~240VAC≥80Grey10°x70°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A13.30HIGH_POWER60W5520lm100~240VAC≥80Grey5°x20°3000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.02.40HIGH_POWER60W5520lm100~240VAC≥80Black2.6°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.12.40HIGH_POWER60W5520lm100~240VAC≥80Black12°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.30.40HIGH_POWER60W5520lm100~240VAC≥80Black30°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.60.40HIGH_POWER60W5520lm100~240VAC≥80Black60°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A12.40HIGH_POWER60W5520lm100~240VAC≥80Black10°x70°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A13.40HIGH_POWER60W5520lm100~240VAC≥80Black5°x20°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.02.40HIGH_POWER60W5520lm100~240VAC≥80Grey2.6°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.12.40HIGH_POWER60W5520lm100~240VAC≥80Grey12°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.30.40HIGH_POWER60W5520lm100~240VAC≥80Grey30°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.60.40HIGH_POWER60W5520lm100~240VAC≥80Grey60°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A12.40HIGH_POWER60W5520lm100~240VAC≥80Grey10°x70°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A13.40HIGH_POWER60W5520lm100~240VACGrey5°x20°4000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.02.50HIGH_POWER60W5520lm100~240VAC≥80Black2.6°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.12.50HIGH_POWER60W5520lm100~240VAC≥80Black12°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.30.50HIGH_POWER60W5520lm100~240VAC≥80Black30°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.60.50HIGH_POWER60W5520lm100~240VAC≥80Black60°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A12.50HIGH_POWER60W5520lm100~240VAC≥80Black10°x70°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.04.A13.50HIGH_POWER60W5520lm100~240VAC≥80Black5°x20°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.02.50HIGH_POWER60W5520lm100~240VAC≥80Grey2.6°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.12.50HIGH_POWER60W5520lm100~240VAC≥80Grey12°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.30.50HIGH_POWER60W5520lm100~240VAC≥80Grey30°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.60.50HIGH_POWER60W5520lm100~240VAC≥80Grey60°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A12.50HIGH_POWER60W5520lm100~240VAC≥80Grey10°x70°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771005.06.A13.50HIGH_POWER60W5520lm100~240VAC≥80Grey5°x20°5000KIP66-60°-+80°-15°-+15°>0.95Ø260x303mm

WL771006 100W Ø260

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingVerticalHorizontalPFDimension
WL771006.04.15.04HIGH_POWER100W4700lm100~240VAC≥80Black15°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.04.20.04HIGH_POWER100W4700lm100~240VAC≥80Black20°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.04.30.04HIGH_POWER100W4700lm100~240VAC≥80Black30°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.04.A11.04HIGH_POWER100W4700lm100~240VAC≥80Black15°x60°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.06.15.04HIGH_POWER100W4700lm100~240VAC≥80Grey15°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.06.20.04HIGH_POWER100W4700lm100~240VAC≥80Grey20°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.06.30.04HIGH_POWER100W4700lm100~240VAC≥80Grey30°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771006.06.A11.04HIGH_POWER100W4700lm100~240VAC≥80Grey15°x60°RGBWIP66-60°-+80°-15°-+15°>0.95Ø260x303mm

WL771007 100W Ø260

Product CodeLEDPowerLumenInputFinishBeam_AngleCCTIP_RatingVerticalHorizontalPFDimension
WL771007.04.15.04HIGH_POWER100W4500lm100~240VACBlack15°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.04.20.04HIGH_POWER100W4500lm100~240VACBlack20°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.04.30.04HIGH_POWER100W4500lm100~240VACBlack30°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.04.A11.04HIGH_POWER100W4500lm100~240VACBlack15°x60°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.06.15.04HIGH_POWER100W4500lm100~240VACGrey15°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.06.20.04HIGH_POWER100W4500lm100~240VACGrey20°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.06.30.04HIGH_POWER100W4500lm100~240VACGrey30°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
WL771007.06.A11.04HIGH_POWER100W4500lm100~240VACGrey15°x60°RGBIP66-60°-+80°-15°-+15°>0.95Ø260x303mm
