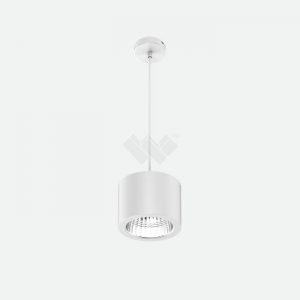

GRACE

Grace series led pendant light adopts high quality Brand COB LED as a light source.

Traditional deep reflector (UGR<19) that provides perfect combination of high lighting efficiency.

Comfortable lighting and adopts simple and elegant design.

Excellent thermal management system is achieved be integrated reflector and superior aluminum material.

Grace series surface mounted and pendant lights are available in 3 different wattages and sizes

Dimmable available with 0-10V, Dali and Triac

Available customized color finish and color temperature upon the request.

SKU: WL221058, WL221059, WL221060 Category: Tags: ,

Description

WL221058 13W Ø143

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimensionSuspension
WL221058.02.60.30COB13W1460lm220~240VAC≥90White60°3000KIP54>0.90Ø143x112mm1200mm
WL221058.02.90.30COB13W1460lm220~240VAC≥90White90°3000KIP54>0.90Ø143x112mm1200mm
WL221058.04.60.30COB13W1460lm220~240VAC≥90Black60°3000KIP54>0.90Ø143x112mm1200mm
WL221058.04.90.30COB13W1460lm220~240VAC≥90Black90°3000KIP54>0.90Ø143x112mm1200mm
WL221058.02.60.40COB13W1460lm220~240VAC≥90White60°4000KIP54>0.90Ø143x112mm1200mm
WL221058.02.90.40COB13W1460lm220~240VAC≥90White90°4000KIP54>0.90Ø143x112mm1200mm
WL221058.04.60.40COB13W1460lm220~240VAC≥90Black60°4000KIP54>0.90Ø143x112mm1200mm
WL221058.04.90.40COB13W1460lm220~240VAC≥90Black90°4000KIP54>0.90Ø143x112mm1200mm
WL221058.02.60.50COB13W1460lm220~240VAC≥90White60°5000KIP54>0.90Ø143x112mm1200mm
WL221058.02.90.50COB13W1460lm220~240VAC≥90White90°5000KIP54>0.90Ø143x112mm1200mm
WL221058.04.60.50COB13W1460lm220~240VAC≥90Black60°5000KIP54>0.90Ø143x112mm1200mm
WL221058.04.90.50COB13W1460lm220~240VAC≥90Black90°5000KIP54>0.90Ø143x112mm1200mm

WL221059 18W Ø170

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimensionSuspension
WL221059.02.60.30COB18W1890lm220~240VAC≥90White60°3000KIP54>0.90Ø170x123mm1200mm
WL221059.02.90.30COB18W1890lm220~240VAC≥90White90°3000KIP54>0.90Ø170x123mm1200mm
WL221059.04.60.30COB18W1890lm220~240VAC≥90Black60°3000KIP54>0.90Ø170x123mm1200mm
WL221059.04.90.30COB18W1890lm220~240VAC≥90Black90°3000KIP54>0.90Ø170x123mm1200mm
WL221059.02.60.40COB18W1890lm220~240VAC≥90White60°4000KIP54>0.90Ø170x123mm1200mm
WL221059.02.90.40COB18W1890lm220~240VAC≥90White90°4000KIP54>0.90Ø170x123mm1200mm
WL221059.04.60.40COB18W1890lm220~240VAC≥90Black60°4000KIP54>0.90Ø170x123mm1200mm
WL221059.04.90.40COB18W1890lm220~240VAC≥90Black90°4000KIP54>0.90Ø170x123mm1200mm
WL221059.02.60.50COB18W1890lm220~240VAC≥90White60°5000KIP54>0.90Ø170x123mm1200mm
WL221059.02.90.50COB18W1890lm220~240VAC≥90White90°5000KIP54>0.90Ø170x123mm1200mm
WL221059.04.60.50COB18W1890lm220~240VAC≥90Black60°5000KIP54>0.90Ø170x123mm1200mm
WL221059.04.90.50COB18W1890lm220~240VAC≥90Black90°5000KIP54>0.90Ø170x123mm1200mm

WL221060 25W Ø213

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimensionSuspension
WL221060.02.60.30COB25W2930lm220~240VAC≥90White60°3000KIP54>0.90Ø213x127mm1200mm
WL221060.02.90.30COB25W2930lm220~240VAC≥90White90°3000KIP54>0.90Ø213x127mm1200mm
WL221060.04.60.30COB25W2930lm220~240VAC≥90Black60°3000KIP54>0.90Ø213x127mm1200mm
WL221060.04.90.30COB25W2930lm220~240VAC≥90Black90°3000KIP54>0.90Ø213x127mm1200mm
WL221060.02.60.40COB25W2930lm220~240VAC≥90White60°4000KIP54>0.90Ø213x127mm1200mm
WL221060.02.90.40COB25W2930lm220~240VAC≥90White90°4000KIP54>0.90Ø213x127mm1200mm
WL221060.04.60.40COB25W2930lm220~240VAC≥90Black60°4000KIP54>0.90Ø213x127mm1200mm
WL221060.04.90.40COB25W2930lm220~240VAC≥90Black90°4000KIP54>0.90Ø213x127mm1200mm
WL221060.02.60.50COB25W2930lm220~240VAC≥90White60°5000KIP54>0.90Ø213x127mm1200mm
WL221060.02.90.50COB25W2930lm220~240VAC≥90White90°5000KIP54>0.90Ø213x127mm1200mm
WL221060.04.60.50COB25W2930lm220~240VAC≥90Black60°5000KIP54>0.90Ø213x127mm1200mm
WL221060.04.90.50COB25W2930lm220~240VAC≥90Black90°5000KIP54>0.90Ø213x127mm1200mm
