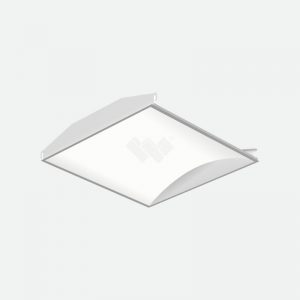

INDIRECT PANEL 60×60

TROFFER Series adopts high efficacy smd LED as a light source

Body & frame made with Iron and diffuser made with polystyrene

Luminaire are designed for solving glare problem with anti-glare reflector UGR <16

Anti-shock capability and life by the strong able structure design and brad material supporting excellent efficiency, long distance transportation and long

life 45°C/W hear resistance, best cooler for led chip. Just 8°C higher than solder point.

Support with 1-10V, Dali, Triac, PWM & Emergency

Description

WL331008 60x60 27W

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimension
WL331008.02.110.30SMD27W3564lm100~240VAC≥80White110°3000KIP20>0.90597x597x100mm
WL331008.02.110.40SMD27W3564lm100~240VAC≥80White110°4000KIP20>0.90597x597x100mm
WL331008.02.110.50SMD27W3740lm100~240VAC≥80White110°5000KIP20>0.90597x597x100mm

WL331009 60x60 32W

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimension
WL331009.02.110.30SMD32W4224lm100~240VAC≥80White110°3000KIP20>0.90597x597x100mm
WL331009.02.110.40SMD32W4224lm100~240VAC≥80White110°4000KIP20>0.90597x597x100mm
WL331009.02.110.50SMD32W4435lm100~240VAC≥80White110°5000KIP20>0.90597x597x100mm
