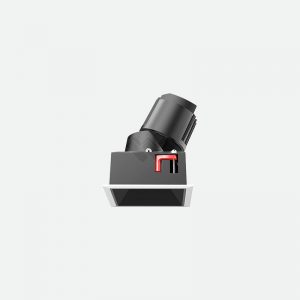

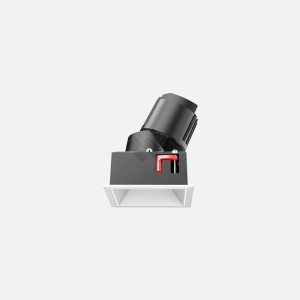

LYDIA SQ ADJ

LYDIA series downlights adopts high performance CITIZEN LED as a light source.

Outstanding color rendition effect, meet the lighting demand of upscale places

Use imported specular aluminum of vacuum electroplating, improving reflection efficiency 15% to achieve high efficient energy saving

Die casting aluminum heat sink conducts the heat from the chip effectively, and ensure the lamp performance and long life span.

TRIAC, 1~10V, DALI dimming available

Category: Tags: ,

Description

WL111249 5W 85x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111249.02.11.30COB5W250lm220~240VAC≥90White11°3000KIP5485x85x90mm75x75mm
WL111249.02.18.30COB5W250lm220~240VAC≥90White18°3000KIP5485x85x90mm75x75mm
WL111249.02.24.30COB5W250lm220~240VAC≥90White24°3000KIP5485x85x90mm75x75mm
WL111249.02.36.30COB5W250lm220~240VAC≥90White36°3000KIP5485x85x90mm75x75mm
WL111249.02.50.30COB5W250lm220~240VAC≥90White50°3000KIP5485x85x90mm75x75mm
WL111249.04.11.30COB5W250lm220~240VAC≥90Black11°3000KIP5485x85x90mm75x75mm
WL111249.04.18.30COB5W250lm220~240VAC≥90Black18°3000KIP5485x85x90mm75x75mm
WL111249.04.24.30COB5W250lm220~240VAC≥90Black24°3000KIP5485x85x90mm75x75mm
WL111249.04.36.30COB5W250lm220~240VAC≥90Black36°3000KIP5485x85x90mm75x75mm
WL111249.04.50.30COB5W250lm220~240VAC≥90Black50°3000KIP5485x85x90mm75x75mm
WL111249.02.11.40COB5W250lm220~240VAC≥90White11°4000KIP5485x85x90mm75x75mm
WL111249.02.18.40COB5W250lm220~240VAC≥90White18°4000KIP5485x85x90mm75x75mm
WL111249.02.24.40COB5W250lm220~240VAC≥90White24°4000KIP5485x85x90mm75x75mm
WL111249.02.36.40COB5W250lm220~240VAC≥90White36°4000KIP5485x85x90mm75x75mm
WL111249.02.50.40COB5W250lm220~240VAC≥90White50°4000KIP5485x85x90mm75x75mm
WL111249.04.11.40COB5W250lm220~240VAC≥90Black11°4000KIP5485x85x90mm75x75mm
WL111249.04.18.40COB5W250lm220~240VAC≥90Black18°4000KIP5485x85x90mm75x75mm
WL111249.04.24.40COB5W250lm220~240VAC≥90Black24°4000KIP5485x85x90mm75x75mm
WL111249.04.36.40COB5W250lm220~240VAC≥90Black36°4000KIP5485x85x90mm75x75mm
WL111249.04.50.40COB5W250lm220~240VAC≥90Black50°4000KIP5485x85x90mm75x75mm
WL111249.02.11.50COB5W250lm220~240VAC≥90White11°5000KIP5485x85x90mm75x75mm
WL111249.02.18.50COB5W250lm220~240VAC≥90White18°5000KIP5485x85x90mm75x75mm
WL111249.02.24.50COB5W250lm220~240VAC≥90White24°5000KIP5485x85x90mm75x75mm
WL111249.02.36.50COB5W250lm220~240VAC≥90White36°5000KIP5485x85x90mm75x75mm
WL111249.02.50.50COB5W250lm220~240VAC≥90White50°5000KIP5485x85x90mm75x75mm
WL111249.04.11.50COB5W250lm220~240VAC≥90Black11°5000KIP5485x85x90mm75x75mm
WL111249.04.18.50COB5W250lm220~240VAC≥90Black18°5000KIP5485x85x90mm75x75mm
WL111249.04.24.50COB5W250lm220~240VAC≥90Black24°5000KIP5485x85x90mm75x75mm
WL111249.04.36.50COB5W250lm220~240VAC≥90Black36°5000KIP5485x85x90mm75x75mm
WL111249.04.50.50COB5W250lm220~240VAC≥90Black50°5000KIP5485x85x90mm75x75mm

WL111250 8W 85x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111250.02.11.30COB8W400lm220~240VAC≥90White11°3000KIP5485x85x90mm75x75mm
WL111250.02.18.30COB8W400lm220~240VAC≥90White18°3000KIP5485x85x90mm75x75mm
WL111250.02.24.30COB8W400lm220~240VAC≥90White24°3000KIP5485x85x90mm75x75mm
WL111250.02.36.30COB8W400lm220~240VAC≥90White36°3000KIP5485x85x90mm75x75mm
WL111250.02.50.30COB8W400lm220~240VAC≥90White50°3000KIP5485x85x90mm75x75mm
WL111250.04.11.30COB8W400lm220~240VAC≥90Black11°3000KIP5485x85x90mm75x75mm
WL111250.04.18.30COB8W400lm220~240VAC≥90Black18°3000KIP5485x85x90mm75x75mm
WL111250.04.24.30COB8W400lm220~240VAC≥90Black24°3000KIP5485x85x90mm75x75mm
WL111250.04.36.30COB8W400lm220~240VAC≥90Black36°3000KIP5485x85x90mm75x75mm
WL111250.04.50.30COB8W400lm220~240VAC≥90Black50°3000KIP5485x85x90mm75x75mm
WL111250.02.11.40COB8W400lm220~240VAC≥90White11°4000KIP5485x85x90mm75x75mm
WL111250.02.18.40COB8W400lm220~240VAC≥90White18°4000KIP5485x85x90mm75x75mm
WL111250.02.24.40COB8W400lm220~240VAC≥90White24°4000KIP5485x85x90mm75x75mm
WL111250.02.36.40COB8W400lm220~240VAC≥90White36°4000KIP5485x85x90mm75x75mm
WL111250.02.50.40COB8W400lm220~240VAC≥90White50°4000KIP5485x85x90mm75x75mm
WL111250.04.11.40COB8W400lm220~240VAC≥90Black11°4000KIP5485x85x90mm75x75mm
WL111250.04.18.40COB8W400lm220~240VAC≥90Black18°4000KIP5485x85x90mm75x75mm
WL111250.04.24.40COB8W400lm220~240VAC≥90Black24°4000KIP5485x85x90mm75x75mm
WL111250.04.36.40COB8W400lm220~240VAC≥90Black36°4000KIP5485x85x90mm75x75mm
WL111250.04.50.40COB8W400lm220~240VAC≥90Black50°4000KIP5485x85x90mm75x75mm
WL111250.02.11.50COB8W400lm220~240VAC≥90White11°5000KIP5485x85x90mm75x75mm
WL111250.02.18.50COB8W400lm220~240VAC≥90White18°5000KIP5485x85x90mm75x75mm
WL111250.02.24.50COB8W400lm220~240VAC≥90White24°5000KIP5485x85x90mm75x75mm
WL111250.02.36.50COB8W400lm220~240VAC≥90White36°5000KIP5485x85x90mm75x75mm
WL111250.02.50.50COB8W400lm220~240VAC≥90White50°5000KIP5485x85x90mm75x75mm
WL111250.04.11.50COB8W400lm220~240VAC≥90Black11°5000KIP5485x85x90mm75x75mm
WL111250.04.18.50COB8W400lm220~240VAC≥90Black18°5000KIP5485x85x90mm75x75mm
WL111250.04.24.50COB8W400lm220~240VAC≥90Black24°5000KIP5485x85x90mm75x75mm
WL111250.04.36.50COB8W400lm220~240VAC≥90Black36°5000KIP5485x85x90mm75x75mm
WL111250.04.50.50COB8W400lm220~240VAC≥90Black50°5000KIP5485x85x90mm75x75mm

WL111251 12W 85x85

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingDimensionCutout
WL111251.02.18.30COB12W600lm220~240VAC≥90White18°3000KIP5485x85x110mm75x75mm
WL111251.02.24.30COB12W600lm220~240VAC≥90White24°3000KIP5485x85x110mm75x75mm
WL111251.02.36.30COB12W600lm220~240VAC≥90White36°3000KIP5485x85x110mm75x75mm
WL111251.02.50.30COB12W600lm220~240VAC≥90White50°3000KIP5485x85x110mm75x75mm
WL111251.04.18.30COB12W600lm220~240VAC≥90Black18°3000KIP5485x85x110mm75x75mm
WL111251.04.24.30COB12W600lm220~240VAC≥90Black24°3000KIP5485x85x110mm75x75mm
WL111251.04.36.30COB12W600lm220~240VAC≥90Black36°3000KIP5485x85x110mm75x75mm
WL111251.04.50.30COB12W600lm220~240VAC≥90Black50°3000KIP5485x85x110mm75x75mm
WL111251.02.18.40COB12W600lm220~240VAC≥90White18°4000KIP5485x85x110mm75x75mm
WL111251.02.24.40COB12W600lm220~240VAC≥90White24°4000KIP5485x85x110mm75x75mm
WL111251.02.36.40COB12W600lm220~240VAC≥90White36°4000KIP5485x85x110mm75x75mm
WL111251.02.50.40COB12W600lm220~240VAC≥90White50°4000KIP5485x85x110mm75x75mm
WL111251.04.18.40COB12W600lm220~240VAC≥90Black18°4000KIP5485x85x110mm75x75mm
WL111251.04.24.40COB12W600lm220~240VAC≥90Black24°4000KIP5485x85x110mm75x75mm
WL111251.04.36.40COB12W600lm220~240VAC≥90Black36°4000KIP5485x85x110mm75x75mm
WL111251.04.50.40COB12W600lm220~240VAC≥90Black50°4000KIP5485x85x110mm75x75mm
WL111251.02.18.50COB12W600lm220~240VAC≥90White18°5000KIP5485x85x110mm75x75mm
WL111251.02.24.50COB12W600lm220~240VAC≥90White24°5000KIP5485x85x110mm75x75mm
WL111251.02.36.50COB12W600lm220~240VAC≥90White36°5000KIP5485x85x110mm75x75mm
WL111251.02.50.50COB12W600lm220~240VAC≥90White50°5000KIP5485x85x110mm75x75mm
WL111251.04.18.50COB12W600lm220~240VAC≥90Black18°5000KIP5485x85x110mm75x75mm
WL111251.04.24.50COB12W600lm220~240VAC≥90Black24°5000KIP5485x85x110mm75x75mm
WL111251.04.36.50COB12W600lm220~240VAC≥90Black36°5000KIP5485x85x110mm75x75mm
WL111251.04.50.50COB12W600lm220~240VAC≥90Black50°5000KIP5485x85x110mm75x75mm
