MERON TRIMLESS ADJ

MERON trimless spot light series adopts CREE LED as a light source

Lamp body made with quality aluminum in powder-coated treatment

High quality optical lens which given softens light

Excellent aluminum radiator extend life.

Trimless installation given better integration of the structure of the room, to retain the original decoration style.

Lifespan is up to 50,000 hrs

0-10V, Dali, Triac dimmable

Description

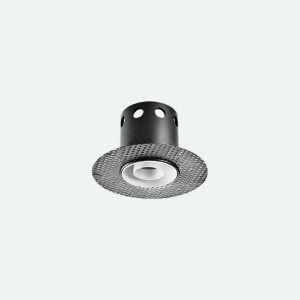

WL111113 6W Ø150

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111113.02.13.30COB6W420lm100~240VAC≥90White13°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.24.30COB6W420lm100~240VAC≥90White24°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.36.30COB6W420lm100~240VAC≥90White36°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.13.30COB6W420lm100~240VAC≥90Black13°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.24.30COB6W420lm100~240VAC≥90Black24°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.36.30COB6W420lm100~240VAC≥90Black36°3000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.13.40COB6W500lm100~240VAC≥90White13°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.24.40COB6W500lm100~240VAC≥90White24°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.36.40COB6W500lm100~240VAC≥90White36°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.13.40COB6W500lm100~240VAC≥90Black13°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.24.40COB6W500lm100~240VAC≥90Black24°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.36.40COB6W500lm100~240VAC≥90Black36°4000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.13.50COB6W510lm100~240VAC≥90White13°5000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.24.50COB6W510lm100~240VAC≥90White24°5000KIP4030°/350°Ø150x88mmØ80mm
WL111113.02.36.50COB6W510lm100~240VAC≥90White36°5000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.13.50COB6W510lm100~240VAC≥90Black13°5000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.24.50COB6W510lm100~240VAC≥90Black24°5000KIP4030°/350°Ø150x88mmØ80mm
WL111113.04.36.50COB6W510lm100~240VAC≥90Black36°5000KIP4030°/350°Ø150x88mmØ80mm

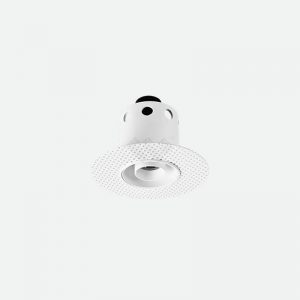

WL111381 13W Ø150

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingTilt/RotateDimensionCutout
WL111381.02.13.30COB13W850lm100~240VAC≥90White13°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.24.30COB13W850lm100~240VAC≥90White24°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.36.30COB13W850lm100~240VAC≥90White36°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.13.30COB13W850lm100~240VAC≥90Black13°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.24.30COB13W850lm100~240VAC≥90Black24°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.36.30COB13W850lm100~240VAC≥90Black36°3000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.13.40COB13W1020lm100~240VAC≥90White13°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.24.40COB13W1020lm100~240VAC≥90White24°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.36.40COB13W1020lm100~240VAC≥90White36°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.13.40COB13W1020lm100~240VAC≥90Black13°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.24.40COB13W1020lm100~240VAC≥90Black24°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.36.40COB13W1020lm100~240VAC≥90Black36°4000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.13.50COB13W1100lm100~240VAC≥90White13°5000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.24.50COB13W1100lm100~240VAC≥90White24°5000KIP4030°/350°Ø150x128mmØ80mm
WL111381.02.36.50COB13W1100lm100~240VAC≥90White36°5000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.13.50COB13W1100lm100~240VAC≥90Black13°5000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.24.50COB13W1100lm100~240VAC≥90Black24°5000KIP4030°/350°Ø150x128mmØ80mm
WL111381.04.36.50COB13W1100lmv≥90Black36°5000KIP4030°/350°Ø150x128mmØ80mm
