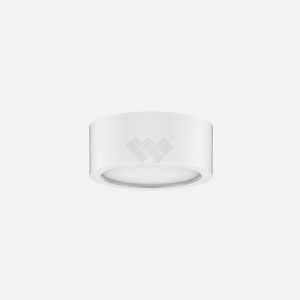

OLIVER RD

Oliver series downlight adopts high lumen SMD LED as a light source

Body made with extruded aluminum

PMMA diffuser with even light output

IP54 waterproof structural design and ideal replacement for damp location

Up to 70% energy saving compared to standard CFL

Available in three different size and wattage

Dimmable with 0-10V, Dali and Triac. other dimming will available upon the request

Description

WL221034 8W Ø100

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimension
WL221034.02.100.30SMD8W744lm220~240VAC≥90White100°3000KIP54>0.90Ø100x60mm
WL221034.04.100.30SMD8W744lm220~240VAC≥90Black100°3000KIP54>0.90Ø100x60mm
WL221034.02.100.40SMD8W744lm220~240VAC≥90White100°4000KIP54>0.90Ø100x60mm
WL221034.04.100.40SMD8W744lm220~240VAC≥90Black100°4000KIP54>0.90Ø100x60mm
WL221034.02.100.50SMD8W744lm220~240VAC≥90White100°5000KIP54>0.90Ø100x60mm
WL221034.04.100.50SMD8W744lm220~240VAC≥90Black100°5000KIP54>0.90Ø100x60mm

WL221035 15W Ø150

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimension
WL221035.02.100.30SMD15W1380lm220~240VAC≥90White100°3000KIP54>0.90Ø150x68mm
WL221035.04.100.30SMD15W1380lm220~240VAC≥90Black100°3000KIP54>0.90Ø150x68mm
WL221035.02.100.40SMD15W1380lm220~240VAC≥90White100°4000KIP54>0.90Ø150x68mm
WL221035.04.100.40SMD15W1380lm220~240VAC≥90Black100°4000KIP54>0.90Ø150x68mm
WL221035.02.100.50SMD15W1380lm220~240VAC≥90White100°5000KIP54>0.90Ø150x68mm
WL221035.04.100.50SMD15W1380lm220~240VAC≥90Black100°5000KIP54>0.90Ø150x68mm

WL221036 18W Ø170

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingPFDimension
WL221035.02.100.30SMD15W1380lm220~240VAC≥90White100°3000KIP54>0.90Ø150x68mm
WL221035.04.100.30SMD15W1380lm220~240VAC≥90Black100°3000KIP54>0.90Ø150x68mm
WL221035.02.100.40SMD15W1380lm220~240VAC≥90White100°4000KIP54>0.90Ø150x68mm
WL221035.04.100.40SMD15W1380lm220~240VAC≥90Black100°4000KIP54>0.90Ø150x68mm
WL221035.02.100.50SMD15W1380lm220~240VAC≥90White100°5000KIP54>0.90Ø150x68mm
WL221035.04.100.50SMD15W1380lm220~240VAC≥90Black100°5000KIP54>0.90Ø150x68mm
