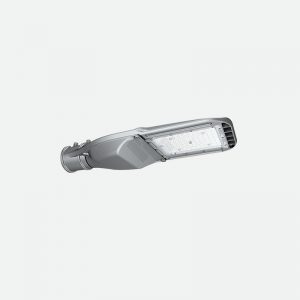

ROADSTER

ROADSTER Series street light adopts High lumen output up to 135lm/W with high-quality LUMI led as a light source.

Special circuit design, single LED’s damage won’t affect others’ normal work.

Smart design with a wide range of wattage.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

Designed to last at least 100, 000 hours at L70.

SKU: WL981022, WL981023, WL981024, WL981026, WL981027 Category: Tag:

Description

led street lighting,

WL981022 28W 447x179

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP _RatingIK_RatingPFDimension
WL981022.04.150.30HIGH_POWER28W3780lm100~277VAC>70Black150°3000KIP66IK10>0.9447x179x77mm
WL981022.06.150.30HIGH_POWER28W3780lm100~277VAC>70Grey150°3000KIP66IK10>0.9447x179x77mm
WL981022.04.150.40HIGH_POWER28W3780lm100~277VAC>70Black150°4000KIP66IK10>0.9447x179x77mm
WL981022.06.150.40HIGH_POWER28W3780lm100~277VAC>70Grey150°4000KIP66IK10>0.9447x179x77mm
WL981022.04.150.60HIGH_POWER28W3780lm100~277VAC>70Black150°6000KIP66IK10>0.9447x179x77mm
WL981022.06.150.60HIGH_POWER28W3780lm100~277VAC>70Grey150°6000KIP66IK10>0.9447x179x77mm

led street lighting,

WL981023 38W 447x179

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingIK_RatingPFDimension
WL981023.04.150.30HIGH_POWER38W4940lm100~277VAC>70Black150°3000KIP66IK10>0.9447x179x77mm
WL981023.06.150.30HIGH_POWER38W4940lm100~277VAC>70Grey150°3000KIP66IK10>0.9447x179x77mm
WL981023.04.150.40HIGH_POWER38W4940lm100~277VAC>70Black150°4000KIP66IK10>0.9447x179x77mm
WL981023.06.150.40HIGH_POWER38W4940lm100~277VAC>70Grey150°4000KIP66IK10>0.9447x179x77mm
WL981023.04.150.60HIGH_POWER38W4940lm100~277VAC>70Black150°6000KIP66IK10>0.9447x179x77mm
WL981023.06.150.60HIGH_POWER38W4940lm100~277VAC>70Grey150°6000KIP66IK10>0.9447x179x77mm

led street lighting,

WL981024 57W 447x179

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingIK_RatingPFDimension
WL981024.04.150.30HIGH_POWER57W7410lm100~277VAC>70Black150°3000KIP66IK10>0.9447x179x77mm
WL981024.06.150.30HIGH_POWER57W7410lm100~277VAC>70Grey150°3000KIP66IK10>0.9447x179x77mm
WL981024.04.150.40HIGH_POWER57W7410lm100~277VAC>70Black150°4000KIP66IK10>0.9447x179x77mm
WL981024.06.150.40HIGH_POWER57W7410lm100~277VAC>70Grey150°4000KIP66IK10>0.9447x179x77mm
WL981024.04.150.60HIGH_POWER57W7410lm100~277VAC>70Black150°6000KIP66IK10>0.9447x179x77mm
WL981024.06.150.60HIGH_POWER57W7410lm100~277VAC>70Grey150°6000KIP66IK10>0.9447x179x77mm

led street lighting,

WL981027 60W 447x179

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingIK_RatingPFDimension
WL981027.04.150.30HIGH_POWER60W8400lm100~277VAC>70Black150°3000KIP66IK10>0.9447x179x77mm
WL981027.06.150.30HIGH_POWER60W8400lm100~277VAC>70Grey150°3000KIP66IK10>0.9447x179x77mm
WL981027.04.150.40HIGH_POWER60W8400lm100~277VAC>70Black150°4000KIP66IK10>0.9447x179x77mm
WL981027.06.150.40HIGH_POWER60W8400lm100~277VAC>70Grey150°4000KIP66IK10>0.9447x179x77mm
WL981027.04.150.60HIGH_POWER60W8400lm100~277VAC>70Black150°6000KIP66IK10>0.9447x179x77mm
WL981027.06.150.60HIGH_POWER60W8400lm100~277VAC>70Grey150°6000KIP66IK10>0.9447x179x77mm

led street lighting,

WL981026 90W 447x179

Product CodeLEDPowerLumenInputCRIFinishBeam_AngleCCTIP_RatingIK_RatingPFDimension
WL981026.04.150.30HIGH_POWER90W12600lm100~277VAC>70Black150°3000KIP66IK10>0.9447x179x77mm
WL981026.06.150.30HIGH_POWER90W12600lm100~277VAC>70Grey150°3000KIP66IK10>0.9447x179x77mm
WL981026.04.150.40HIGH_POWER90W12600lm100~277VAC>70Black150°4000KIP66IK10>0.9447x179x77mm
WL981026.06.150.40HIGH_POWER90W12600lm100~277VAC>70Grey150°4000KIP66IK10>0.9447x179x77mm
WL981026.04.150.60HIGH_POWER90W12600lm100~277VAC>70Black150°6000KIP66IK10>0.9447x179x77mm
WL981026.06.150.60HIGH_POWER90W12600lm100~277VAC>70Grey150°6000KIP66IK10>0.9447x179x77mm
